Use Report Parameters

Report parameters allow you to filter report data dynamically.



eurd-web-report-parameters-example



Supported Features/Capabilities

Built-in parameter types (String, Date, Number, Boolean, and GUID)

eurd-web-built-in-parameter-types


Multi-value parameters (filter report data against multiple criteria)

eurd-web-parameter-editor-multiple-values


Cascading parameters (filter a parameter’s value list against selections made in a different parameter)

eurd-web-cascading-parameter-result


Date-range parameters (filter report data against a specified time period)

eurd-web-date-range-report-parameters


Static parameter values (create predefined (static) parameter value lists)

eurd-web-static-parameter-values


Dynamic parameter values (load parameter values from a data source dynamically)

eurd-web-dynamic-parameter-values


Refer to the following documentation section for more details: Create a Report Parameter.



Reference Report Parameters

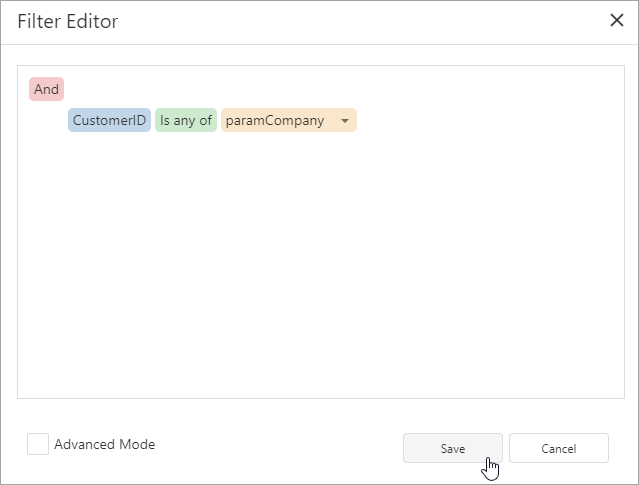

Once you create a parameter, you can reference it in your report’s filter string to filter underlying report data.



eurd-web-reference-parameter-in-report-filter-string



You can also reference the parameter in a report control’s expression or its Text property.



eurd-web-report-parameters-reference-in-expression



When used in this manner, you can filter data displayed within an individual report control (such as Label) conditionally.



You can also bind data source parameters to report parameters and filter data at the data source level. Refer to the following help topic for more information: Reference Report Parameters.



Specify Parameter Values

Available report parameters appear within a report’s Print Preview window (inside the Parameters panel). Use this panel to specify desired parameter values:



eurd-web-parameters-panel
