Preparing the Installation
The PackLayering installation resources come along as an MSI file with additional documents, such as the current Release Notes. Usually, these documents are delivered via FTP server as provided by our support which can be contacted via our Support Panel.
Before the application is installed on a device some preparations are needed:
1.Please make sure, to have the order number or license file at hand. Either one will be provided by a Raynet sales representative or our support team which can be contacted via our Support Panel.
2.The target system needs to meet the system requirements described within the Requirements chapter.
3.A Windows user with sufficient rights for installations must be logged in. Administration rights are required for the installation of PackLayering.
4.Close all dispensable applications during the setup routine execution.
Installing PackLayering
Launch the PackLayering setup with a double-click on the MSI file and wait for the Welcome Screen to be prepared.
Click on the Next > button to proceed with the installation.

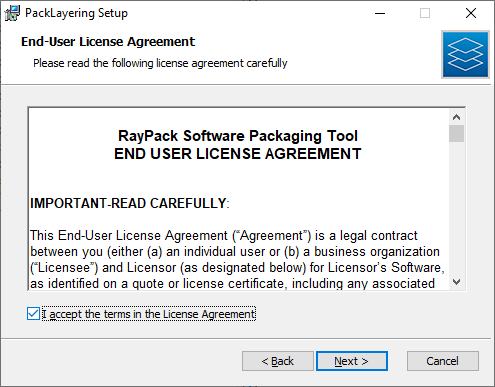

The End User License Agreement dialog appears. To install PackLayering, the End User License Agreement has to be accepted. To proceed, read the End User License Agreement, select the I accept the license agreement option, and click on the Next > button.
Click the Next > button to proceed.

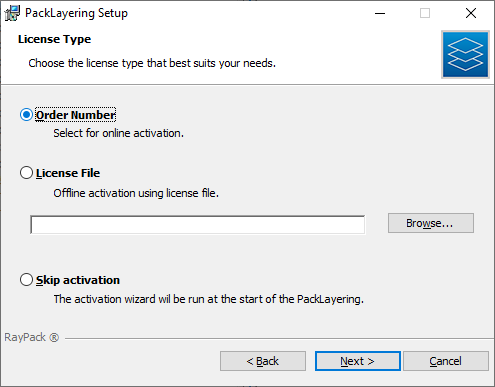

The License Type screen provides options to either activate the PackLayering instance via order number and online activation service, by using an already prepared file (*.license), or to skip activation for now. If the activation is skipped, it will need to be performed later when PackLayering is launched. For more information on product activation at the first launch of PackLayering read this section.
To use an already existing license file, which most likely has been provided by the Raynet support team, the Browse... button must be clicked. Use the controls of the system browser dialog to navigate to the *.license file and select it with a click on the Open button.
Click the Next > button to proceed.

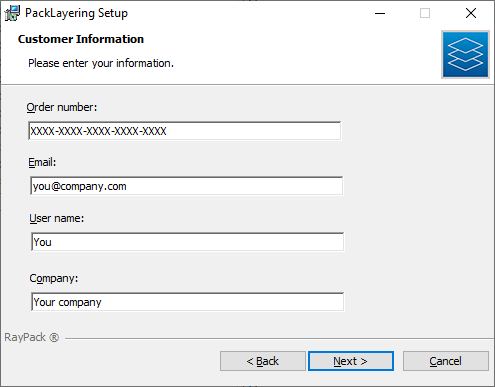

If activation by order number has been selected during the previous step, the Customer Information screen is displayed:
Please enter your individual PackLayering Order number and provide user information, such as Email, Username, and Company. The information will be used to verify the order number during the upcoming execution procedure.
Click the Next > button to proceed.

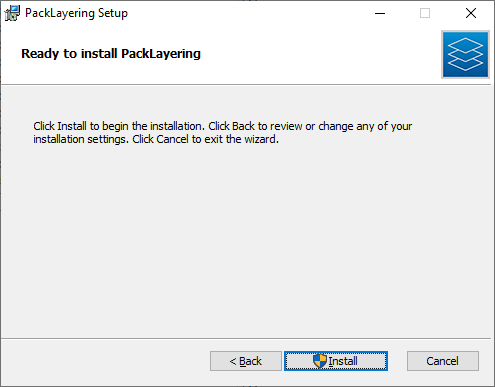

Click Install to start the installation.

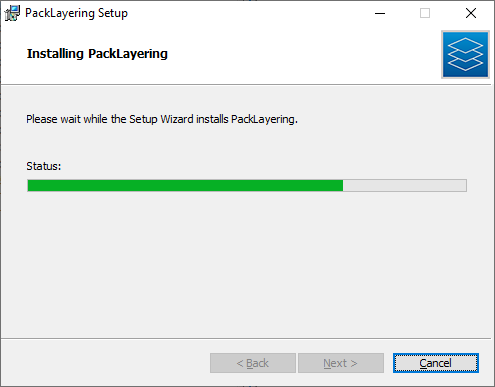

A Progress Indication dialog is displayed as long as the installation steps are executed.

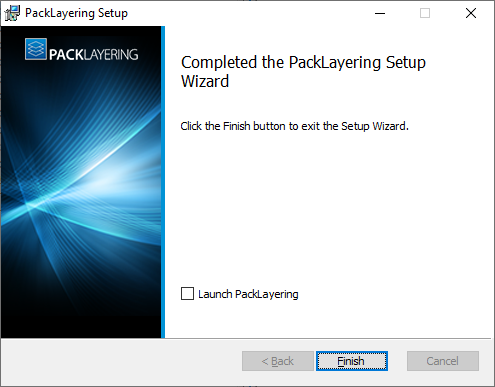

As soon as all required measures are done, the Install Completed dialog is presented.
Click the Finish button to exit the setup. You can also start PackLayering directly, by ticking the checkbox Launch PackLayering before closing the Wizard.
If activation was not performed during the installation process, the product will be activated at the first launch.
For more information on the product activation read this section.
